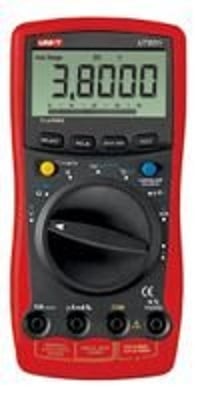

UNI-T UT-60H Dijital Multimetre

pr_01_164

UNI-T UT-60H Dijital Multimetre

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 4V/40V/400V/1000V (0.1%+5)
AC Voltage 4V/40V/400V/750V (1%+4)
DC Current 400mA/4000mA/40mA/400mA/10A (0.5%+10)
AC Current 400mA/4000mA/40mA/400mA/10A (1.2%+4)
Resistance 400W/4kW/40kW/400kW/4MW/40MW (0.5%+10)
Capacitance 40nF/400nF/4mF/40mF/400mF/4mF/40mF (1.5%+20)
Temperature(oC) -40oC ~ 400oC (1%+5)
Frequency 4kHz/40kHz/400kHz/4MHz/40MHz/400MHz (0.01%+3)
Special Functions
Fused 10A Range
Auto Ranging
4~20mA Loop
EF Function
Diode
Continuity Buzzer
True RMS AC
Max/Min Mode
Relative Mode
Data Hold
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for DC Voltage Measurement 3999 (on functions of AC Voltage, AC Current, Diode and Continuity Buzzer)
39999 (on functions of DC Voltage, DC Current, Resistance, Capacitance, Frequency, EF Function and 4-20mA Loop)
Analogue Bar Graph

GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 63 x 31mm
Product Colour Red and Grey
Product Net Weight 320g
Product Size 177 x 85 x 40mm
Standard Accessories Test Lead, Battery, English Manual, Point Contact Temperature Probe, Multi-Purpose Socket, Alligator Clip
Stok kodu: UT60H Kategoriler: , , Etiketler: , , ,

Açıklama

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 4V/40V/400V/1000V (0.1%+5)
AC Voltage 4V/40V/400V/750V (1%+4)
DC Current 400mA/4000mA/40mA/400mA/10A (0.5%+10)
AC Current 400mA/4000mA/40mA/400mA/10A (1.2%+4)
Resistance 400W/4kW/40kW/400kW/4MW/40MW (0.5%+10)
Capacitance 40nF/400nF/4mF/40mF/400mF/4mF/40mF (1.5%+20)
Temperature(oC) -40oC ~ 400oC (1%+5)
Frequency 4kHz/40kHz/400kHz/4MHz/40MHz/400MHz (0.01%+3)
Special Functions
Fused 10A Range
Auto Ranging
4~20mA Loop
EF Function
Diode
Continuity Buzzer
True RMS AC
Max/Min Mode
Relative Mode
Data Hold
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for DC Voltage Measurement 3999 (on functions of AC Voltage, AC Current, Diode and Continuity Buzzer)
39999 (on functions of DC Voltage, DC Current, Resistance, Capacitance, Frequency, EF Function and 4-20mA Loop)
Analogue Bar Graph

GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 63 x 31mm
Product Colour Red and Grey
Product Net Weight 320g
Product Size 177 x 85 x 40mm
Standard Accessories Test Lead, Battery, English Manual, Point Contact Temperature Probe, Multi-Purpose Socket, Alligator Clip
